WHO WE ARE
Based in New Taipei, Taiwan, IPA Electronics is a anisotropic conductive sheet premium manufacturer with an established track record of quality and reliability spanning more then 10 years.
We pride ourselves in providing superior products and service of the highest standard, leveraging our industry-leading experience to meet the wide-ranging needs of customers from start to finish.
We also provide test socket design, consultation, and fabrication services.
Let us help bring your projects to market more efficiently with our anisotropic conductive sheet.
ABOUT ACS
IPA ACS | Conductive Sheet | Test Fixture | Test Socket
What is Anisotropic Conductive Sheet (ACS)?
-
23µm diameter metal pins are embedded into a silicone rubber matrix via proprietary techniques.
-
50µm spacing with each individual pin, provides a conductive path along the vertical axis while remaining insulated from adjacent pins.
-
ACS is easy to use with ic test socket, module test socket, and other electronic product test socket.
-
Simplify test fixture design and eliminate the cost to repair and replace pogo-pins.
-
Please contact us for a free quote!
01 / MICRO DIAMETER
Minimum 23µm diameter metal pins are embedded into a silicone rubber matrix via proprietary techniques.
02 / MICRO PITCH
Minimum pitch is 50µm embed spacing. Each individual pin provides a conductive path along the vertical axis while remaining insulated from adjacent pins.
03 / FIT FOR HIGH FREQUENCY
Short contact length optimal for high frequency applications.
No spring, no inductance.
04 / GOOD ELASTICITY
Silicone rubber sheet have good compressibility and elasticity.
DIMENSIONS
IPA ACS | Conductive Sheet | Test Fixture | Test Socket
FEATURED
IPA ACS | Conductive Sheet | Test Fixture | Test Socket
-
Quickly replace sheets in seconds.
-
Enhanced durability and low maintenance vs. pogo-pin sockets.
-
Higher density than pogo-pins enables testing of micro-pitch ICs.
-
Low electrical resistance, excellent connectivity properties.
-
Short contact length optimal for high frequency applications.
-
Good compressibility and elasticity.
-
Leaves minimal contact marks compared to traditional pin probes.
PERFORMANCE OF ACS

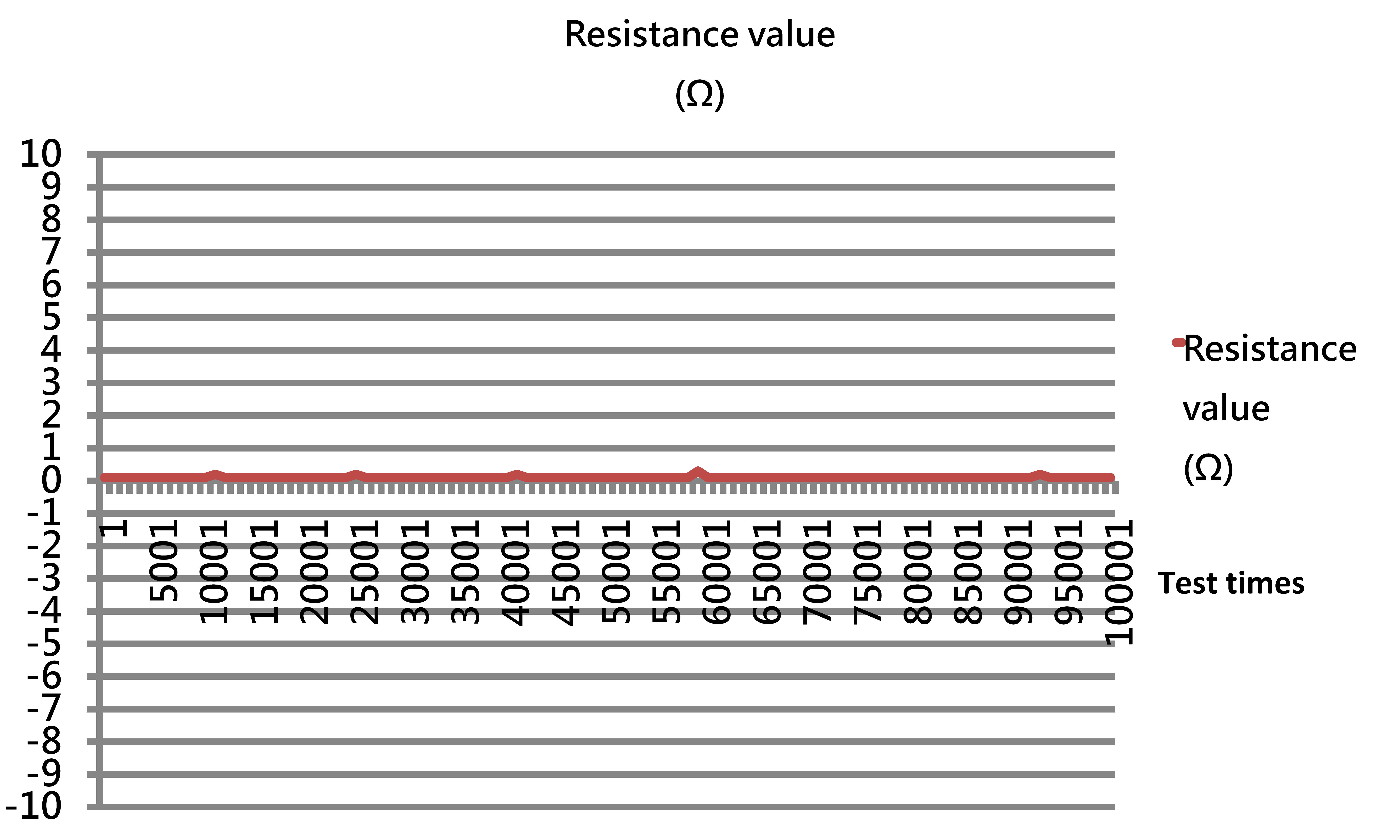

CONTACT RESISTANCE AND CYCLE DURABILITY TEST
Anisotropic Conductive Sheet
Anisotropic Conductive Sheet
Anisotropic Conductive Sheet
Anisotropic Conductive Sheet
APPLICATIONS
IPA ACS | Conductive Sheet | Test Fixture | Test Socket
-
IPA ACS are created with the highest quality materials.
-
From ideation through execution, we are proud of everything we produce here.
-
We’re sure you’ll be satisfied with our products just like all of our past customers.
-
Please check out the ACS application of our customer below.
-
Ex. programming and testing of BGA, QFN, QFP, FPC, FFC, Board to Board, Camera Module, LCD Module, Chip Inductors, etc.
Anisotropic Conductive Sheet
Zoom in 100X
Watch PCB Test
BGA Test Socket
LCD Module Test Socket
Camera Module Test Socket
BGA Test Socket
GPU Test Socket
Board to Board Test Socket
Camera Module Test Socket
GPU Test Socket
IC Test Socket
LCD Module Test Socket
Camera Module Test Socket
GPU Test Socket
BGA Test Socket
Board to Board Test Socket
Chip Inductor Test
DDR4 BGA Test Socket
CMOS Sensor Test Socket
Speaker Module Test Socket
Chip Inductor Test
DDR4 BGA Test Socket
LED LCD Panel Test
Chip Inductor Test
Chip Inductor Test
Camera Module Test Socket
Camera Module Test Socket
Camera Module Test Socket
Camera Module Test Socket
Nvidia RTX2060 GPU Test Socket
